Vinyl Colors

White
White

Almond
Almond

Clay
Clay

Patio Door HandleCascade Series with standard single point mortise and thumb turn lock. This is not available on the WinPro Series Patio Doors.

Exterior Paint Colors

Cream
Cream
Beige
Beige
Tan
Tan
Silver
Silver
Grey
Grey
Medium Brown
Med Brown
Olive
Olive
Red
Red



Forest
Forest
Dark Brown
Dark Brown
Bronze
Bronze
Green
Green
Black
Black

Door can be painted on both sides

WinPro Patio Doors

Complete the look of your home while you maximize every square inch of visibility with the non-restrictive ease of a new glass patio door from Cascade Windows. Well-engineered and attractively designed, our patio doors exude excellence in form as well as function. You'll enjoy years of perfectly smooth operation and benefit from the energy-saving features that go into each patio door.

Cascade also offers a Wide-Rail Patio Door that lends the luxury look and feel of a traditional French Door in a superbly designed patio door system. A variety of grid options and other design choices allow you to create your own personalized look.

Interior & Exterior Paint Colors

Hardware Options

White

White handle

Almond

White handle

Clay

White handle

Configurations Options

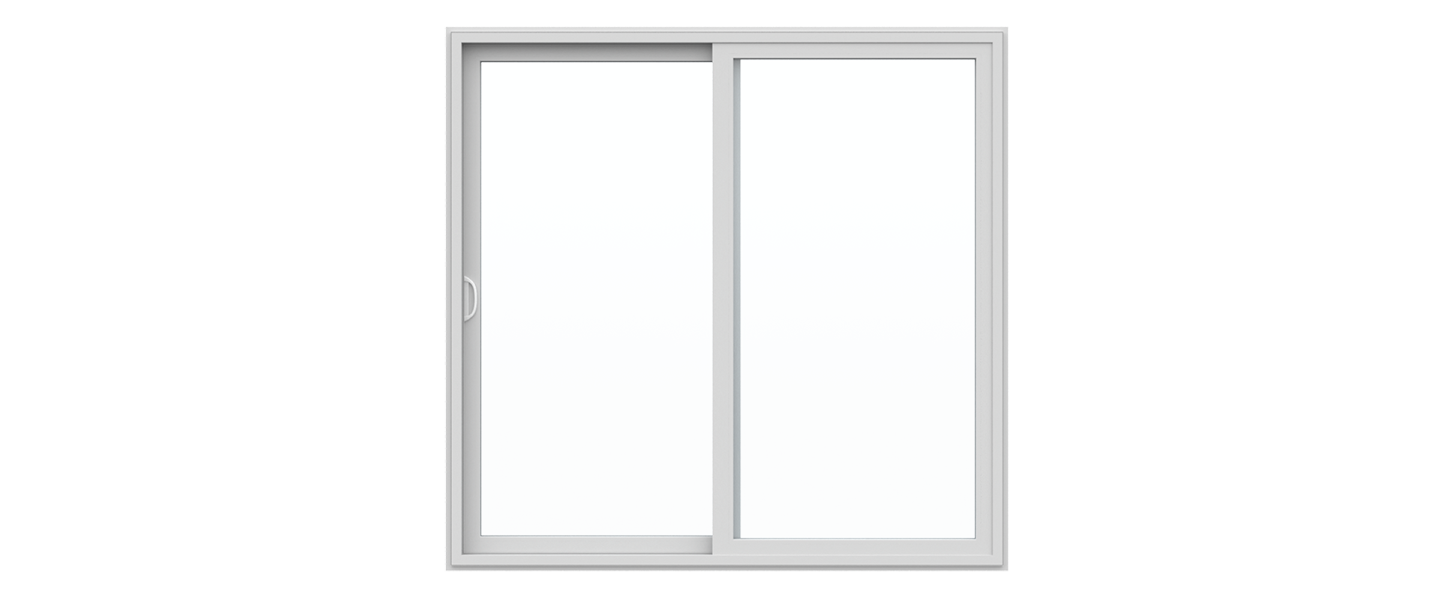

2 Panel

2 Panel 9700 OX Door.
5-0 X 6-8 to 8-0 X 8-0.

3 Panel

3 Panel 9730 OX/O Door.
7-6 X 6-8 to 12-0 X 8-0.

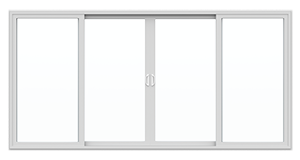

4 Panel

4 Panel 9740 OXXO Door.
10-0 X 6-8 to 16-0 X 8-0.
Custom sizes available.

Cascade U-Value

U-values measure the rate that heat transfers through a product. Therefore the lower u-value, the lower the heat loss and the better your home is insulated. Be sure to check the u-values on any window that you might be considering. Our specially coated EC and EC+ windows re ect outside heat in the summer and interior heat in the winter, reducing your air conditioning and heating requirements.

U-Value Sample Range

U-Value

The Advantage of Cascade Windows Glass Coatings

EC = Dual Coat internal Low-E, high performance internal Low-E with more visual light transmittance.

EC+ = Triple Coat internal Low-E, has been specially formulated to reject the sun's heat without affecting the view. It lets in more light and helps keep the heat out.

EC/EC Advanced = Dual Low-E, high performance internal Low-E combined with 4th surface Low-E.

EC+/ EC Advanced = Dual Low-E, Triple Coat internal Low-E with 4th surface Low-E, the best overall combination for low solar heat gain and the maximum reduction in u-value.

Dual Pane Glass

Heat Flow Illustration

EC logo EC+ Low-E Glass

The Warm Edge Spacer reduces condensation, reduces heat loss/gain through the glass, and greatly increases the integrity of the insulated glass unit's seal.

WinPro Patio Door Specs

Min panel width: 24 inches.
Max panel width: 48 inches.
Max system width: 16 feet.
Max system height: 8 feet.

Material: Extruded vinyl with steel re-enforcement.
Outer frame types: 1-3/8" nail fin set-back
Sash construction: Four corner welded sash.
Glass options: EC, EC+, EC Advanced, EC+ Advanced

Grid Options:

Standard 5/8" wide grid with perimeter & valance. Additional glass and grid styles are available.
