A door system designed around you.



Vinyl Colors

White
White

Almond
Almond

Clay
Clay



Multi-point Handle

Multi-point Handle

Exterior Paint Colors

Cream
Cream
Beige
Beige
Tan
Tan
Silver
Silver
Grey
Grey
Medium Brown
Med Brown
Olive
Olive
Red
Red



Forest
Forest
Dark Brown
Dark Brown
Bronze
Bronze
Green
Green
Black
Black

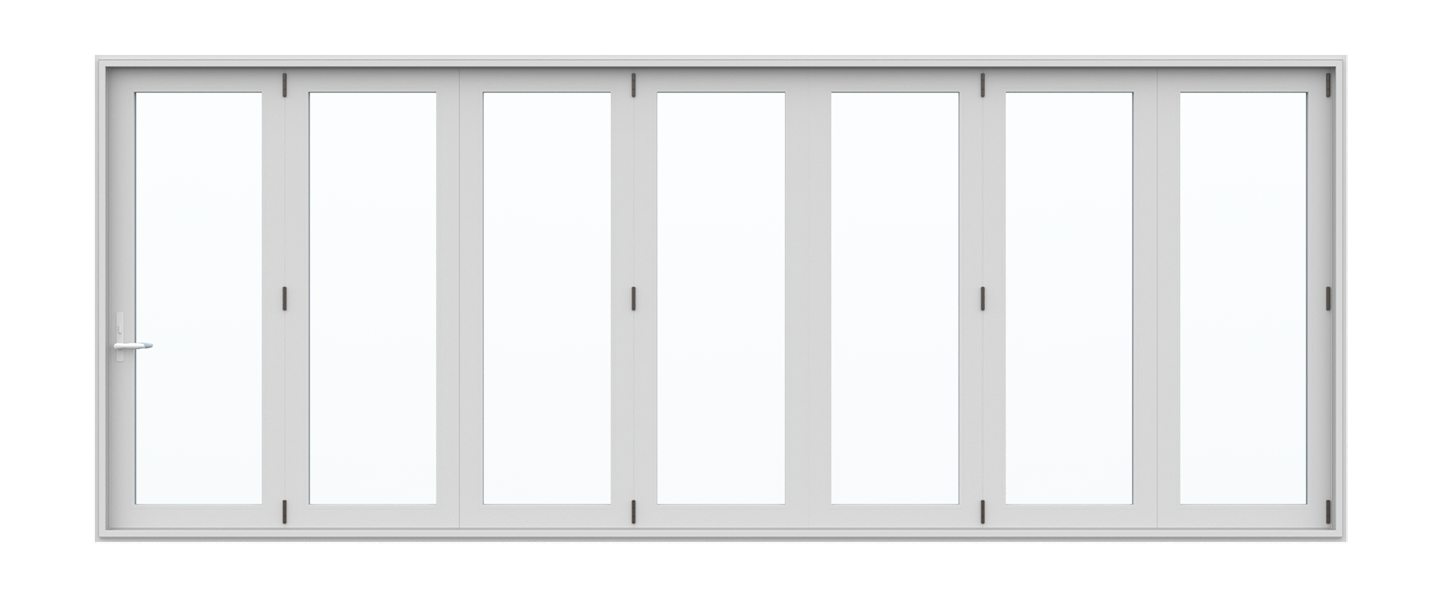

Cascade Vinyl Folding Door System

Architects, homeowners and building professionals can all appreciate the Cascade Folding Door System Cascade's innovative design blends a timeless look with structural integrity.

The design is based on individual stacking doors with interlocking panels. This allows for higher performance ratings and easier operability. In addition, Cascade's new folding door system can also be painted on both sides to customize the design for your living environment. The operation of the door can be ordered with left or right side sliding direction.

Interior & Exterior Paint Colors

Hardware - Standard

White

White handle

Black

Black handle

Hardware - Upgrade

Nickel

Nickel handle

Bronze

Bronze handle

Configurations Options

2 Panel

6' x 8'
2 panel door

3 Panel

9' x 8'
3 panel door

4 Panel

10' x 8'
4 panel door

5 Panel

16' x 8'
5 panel door

Additional Sizing Options

2 panel door - Standard 6’ x 6’8” 4 panel door 10’ x 6’8”
2 panel door - Standard 6’ x 8’ 4 panel door 10’ x 8’
3 panel door 8’ x 6’8” 4 panel door - Standard 11’8 x 6’8”
3 panel door 8’ x 8’ 4 panel door - Standard 11’8 x 8’
3 panel door - Standard 8’10 x 6’8” 4 panel door 12’ x 6’8”
3 panel door - Standard 8’10 x 8’ 4 panel door 12’ x 8’
3 panel door 9’ x 6’8” 5 panel door - Standard 14’6 x 6’8”
3 panel door 9’ x 8’ 5 panel door - Standard 14’6 x 8’
3 panel door 10’ x 6’8” 5 panel door 16’ x 6’8”
3 panel door 10’ x 8’ 5 panel door 16’ x 8’

Operation Direction: Door can be ordered with left or right side sliding direction.

Folding Door System Thermal Performance

* Glass U-Value SHGC
EC, SuperSpacer, Argon .29 .25
SuperSpacer, Argon,
EC Advanced
.25 .25
* Glass U-Value SHGC
SuperSpacer, Argon, EC+ .29 .19
SuperSpacer, Argon,
EC+Advanced
.25 .19

Cascade Vinyl Folding Door Specs

Min panel width: 28 inches.
Max panel width: 40 inches.
Max system width: 16 feet.
Max system height: 8 feet.

Material: Extruded vinyl with aluminum re-enforcement.
DP rating: SP-PG35
Sash construction: Four piece KD Frame
Glass options: EC,=+EC+, EC Advanced, EC+Advanced

Grid Options:

Standard 5/8" wide grid with perimeter & valance. Additional glass and grid styles are available.
